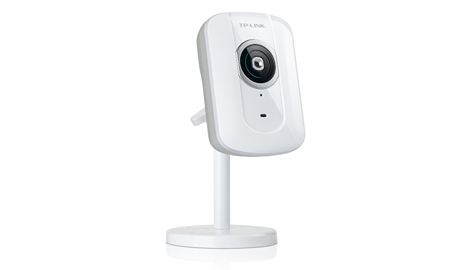

Network Security Camera
TL-SC2020
Rp: 599,000
Highlights:
- MJPEG streams for remote recording and local surveillance
- 1/4 inch progressive scan CMOS sensor produces clear and crisp images, even in low light environment
- Bundled management software accommodates up to 16 cameras at the same time
| CAMERA | |
|---|---|
| Image Sensor | 1/4" Progressive scan CMOS sensor |
| Digital Zoom | 10x Digital |
| Minimum Illumination | 0.5 Lux |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Motion JPEG |
| Frame Rate & Resolutions | Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120 |
| Video Streaming | Motion JPEG |
| Image Settings | Rotation: Mirror, Flip, Mirror Flip; Brightness, Contrast, Saturation, Hue; Overlay capabilities:Time, Date, Text and Privacy image |
| AUDIO | |
|---|---|
| Audio Communication | One-way |
| Audio Input | Built-in microphone |
| Audio Compression | G.711 PCM, 8 kHz, 64 kbit/s |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Events Trigger | Built-in motion detection, schedule |
| Notification Method | E-mail, FTP, HTTP |
| NETWORK | |
|---|---|
| Standards and Protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP,3GPP/ISMA RTSP |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ- 45 for Ethernet 10/100 Base-T |
| Power Connector | DC power jack |
| Audio Input | Built-in microphone |
| Button | Reset push button |
| SURVEILLANCE MANAGEMENT | |
|---|---|
| Bundled Management Software | Viewing and recording up to 16 cameras |
| GENERAL | |
|---|---|
| External Power Supply | 5VDC, Max 3W |
| Certification | CE, FCC, RoHS |
| Package Contents | Network Security Camera TL-SC2020 Power Adapter RJ-45 Ethernet Cable Quick Installation Guide Resource CD Camera Mount Kit |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Dimensions( H X W X D ) | 96 x 66 x 28 mm (3.8 x 2.9 x 1.1 in.) |
